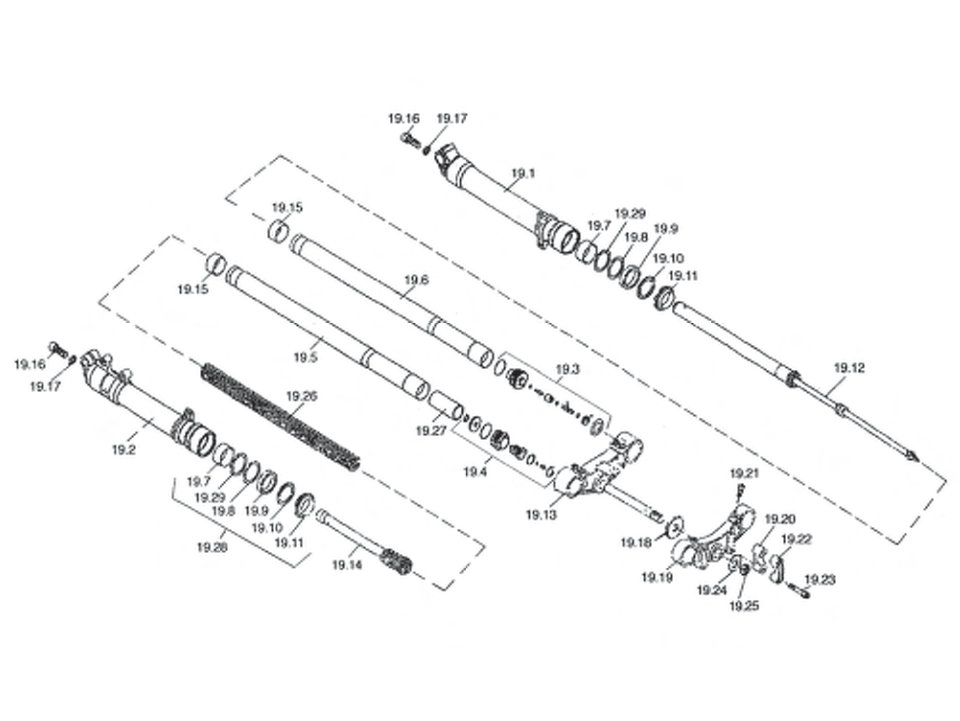

Sherco 1999 - ST 250
- Forks
| Position | Part Number | Description | Quantity |
|---|---|---|---|
| 19.1 | R076 | FORK LEG (LEFT) | |
| 19.2 | R077 | FORK LEG (RIGHT) | |
| 19.3 | R078 | PLUG (RIGHT) | |
| 19.4 | R079 | PLUG (LEFT) | |
| 19.5 | R080 | FORK TUBE (LEFT) | |
| 19.6 | R081 | FORK TUBE (RIGHT) | |
| 19.9 | R070 | FORK OIL SEAL | |
| 19.11 | R096 | DUST SEAL | |
| 19.12 | R083 | PUMPING DEVICE COMPLETE | |
| 19.13 | R082 | BOTTOM PLATE | |
| 19.14 | R084 | ROD | |
| 19.16 | R085 | BOLT M12X25 | |
| 19.18 | R086 | RING NUT | |
| 19.19 | R087 | UPPER PLATE | |
| 19.20 | R072 | BOTTM BAR U-CLAMP | |
| 19.21 | M262 | BOLT M8X30 | |
| 19.22 | R073 | TOP BAR U-CLAMP | |
| 19.23 | M264 | BOLT M8X45 | |
| 19.24 | R088 | WASHER | |
| 19.25 | R089 | NUT | |
| 19.26 | R090 | SPRING | |
| 19.27 | R095 | BUSH (TOP) | |
| 19.28 | R071 | FORK BUSH & SEAL KIT COMPLETE | |
| 19.30 | C300 | FRONT FORK COMPLETE | |
| 19.31 | R091 | MUDGUARD BRIDGE SUPPORT | |
| 19.32 | R092 | OIL SEAL HOLDER | |
| 19.33 | R093 | BOLT M4X9 | |
| 19.34 | R094 | TEFLON WASHER |
