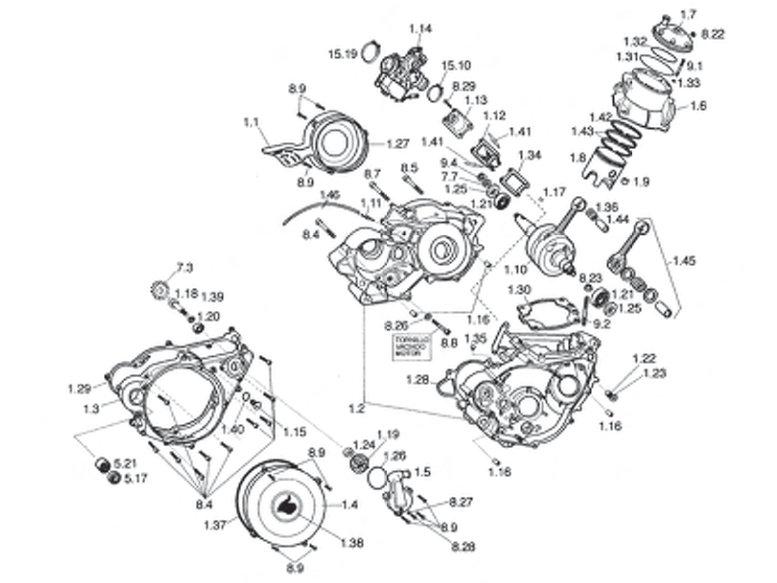

Category Photo
Position Part Number Description Quantity
1.1 M001 INGNITION COVER
1.2 M002 CRANCKCASES SET
1.3 M004 BOTTOM CLUTCH COVER
1.4 M005 CLUTCH COVER
1.5 M006 WATER PUMP COVER
1.6 M215 CILYNDER
1.7 M217 CILYNDER HEAD
1.8 M213 PISTON “A”
1.8 M583 PISTON “B”
1.8 M584 PISTON “C”
1.8 M585 PISTON “D”
1.9 R218 CIRCLIPS PISTON
1.1 M014 RIGHT CRANCKSHAFT
1.11 M016 AIR VENT CRANCKCASES
1.12 M018 REDDS CASE
1.13 M019 ADMISION PIPE
1.14 M020 CARBURETOR COMPLETE
1.15 M021 CARTER FILTER TAP
1.16 M022 DOUILLE CENTRAGE CARTER
1.17 M023 WOODRUFF KEY
1.18 M025 WATERPUMP AXLE
1.19 M026 WATERPUMP TURBINE
1.2 M027 WATERPUMP BEARING
1.21 M028 CRANCKCASES BEARING
1.22 M029 WATERPUMP NEEDLE BEARING
1.23 M030 WATERPUMP BUSH
1.24 M031 WATERPUMP SEAL
1.25 M032 CRANCKSHAFT SEAL
1.26 M033 O-RING WATERPUMP COVER
1.27 M034 O-RING IGNITION COVER
1.28 M035 CENTRAL CRANCKCRASE GASKET
1.29 M036 CLUTCH GASKET
1.3 M037 CILYNDER GASKET
1.31 M222 O-RING CILYNDER HEAD INSIDE
1.32 M223 O-RING CILYNDER HEAD OUTSIDE
1.33 M040 CILYNDER HEAD O-RING BOLT
1.34 M041 REEDS CASE GASKET
1.35 M042 CRANCKCASE OIL TAP
1.36 M241 NEEDLE BEARING PISTON
1.37 M045 O-RING 155x2
1.38 M048 THUMBS ENGINE STICKER
1.39 M049 WASHER 8x14x0,5
1.4 M162 O-RING
1.41 R022 REED VALVES
1.42 R011 RING L
1.43 R214 SET PISTON RINGS
1.44 R220 PISTON PIN
1.45 R021 CRANCKSHAFT REPAIR KIT
1.46 M017 CRANCKCRASE BREATHER
